What Is A Glass Insulator​?

Overhead power grids face intense environmental stress every single day. You cannot treat a glass insulator as just a passive component on a transmission tower. It acts as a critical variable in your electrical infrastructure reliability and maintenance budgeting. We define this component in a modern context as a highly engineered assembly. It securely combines toughened glass, heavy-duty metal hardware, and specialized cement to isolate high-voltage lines from their supporting structures.

While early telegraph networks relied on simple pressed glass cups, modern utility projects demand much more. Grid operators must conduct rigorous evaluations of mechanical failing loads, precise creepage distances, and extreme environmental survivability. This comprehensive guide outlines the essential steps for your next grid upgrade. You will learn how to evaluate, specify, and source the right components for utility-scale applications. We will explore structural anatomy, material comparisons, and strategic procurement frameworks to ensure network stability.

Key Takeaways

• Diagnostic Efficiency: Toughened glass insulators fail by completely shattering ("self-explosion"), allowing for rapid, naked-eye visual inspections from the ground without expensive diagnostic tools.

• Operational Safety: Even when the glass skirt is shattered, the remaining structure maintains over 80% of its mechanical residual strength, eliminating the need for emergency power outages.

• Procurement Standardization: Proper selection requires matching the mechanical breaking load (e.g., 160kN to 300kN+) and profile design (standard, aerodynamic, or anti-pollution) to specific line voltages (220kV to 500kV+ UHV) and regional environmental conditions.

• Longevity & TCO: Unlike ceramics, glass experiences zero dielectric aging, offering a verifiable lifespan exceeding 50 years and lowering Total Cost of Ownership (TCO).

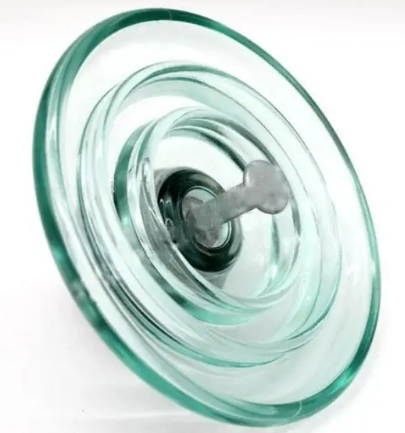

The Engineering Anatomy of a High-Voltage Glass Insulator

Understanding the structural composition provides the foundation for your procurement strategy. You must know how these components work together to evaluate manufacturer quality and regulatory compliance. Every unit undergoes intense stress from wind, ice, and electrical loads.

We divide the anatomy into four core components:

1. Dielectric Material: The primary barrier is a high-quality, thermally toughened glass disc. Manufacturers heat the glass and rapidly cool it. This process creates high internal tension. It enables the disc to withstand severe wind pressure and heavy ice accumulation.

2. Hardware: Heavy loads require strong anchor points. The assembly uses hot-dip galvanized cast-iron caps and forged steel pins. Galvanization prevents rust and structural degradation.

3. Bonding Agent: High-strength aluminous cement acts as the crucial glue. It secures the metal fittings firmly to the glass body. This cement cures to withstand extreme temperature fluctuations.

4. Safety Mechanism: Engineers use stainless steel split pins or safety clips. These small but vital parts lock the connected assemblies together in a long string. They prevent accidental uncoupling during high winds.

This careful construction serves a dual-functionality mechanism. First, it provides robust mechanical support. The strong hardware and cement core resist extreme tension in overhead lines. Second, it delivers complete electrical isolation. The geometric surface contour dictates specific "creepage distances." This distance forces leakage current to travel a longer path across the surface. A longer path prevents the current from bridging the gap and reaching the grounded steel tower.

Glass vs. Porcelain vs. Polymer: Evaluating the Business Case

Grid managers must compare material categories based on daily maintenance realities. You should look beyond the initial purchase price. Evaluate these options based on failure risks, diagnostic labor, and long-term operational impact.

The "visibility" advantage drives immediate operations and maintenance cost reductions. High-quality manufacturers engineer their products with a "self-explosion" characteristic. If the internal stress exceeds safe limits, the glass shatters completely. Premium brands report spontaneous shatter rates below 1 in 10,000 units. You can contrast this clearly with porcelain and polymers. Porcelain suffers from hidden internal micro-cracks. Polymer composite units experience slow surface tracking and erosion. You need expensive corona cameras or specialized testing equipment to find porcelain and polymer faults. Conversely, shattered glass is immediately visible. Ground crews or fast-moving drone patrols can spot a missing skirt instantly.

Residual strength enables smart phased maintenance. When the glass disc shatters, you do not lose the structural integrity of the line. The intact metal cap, forged pin, and cured cement core remain interlocked. This core still provides more than 80% of the original mechanical grip. As an outcome, utilities gain valuable time. You can delay unit replacement until scheduled routine maintenance windows. You avoid initiating highly disruptive and costly emergency line shutdowns.

Lifecycle durability ensures excellent sustainability. Glass features zero aging degradation. The dielectric properties do not fade over time. In many regions, the insulator outlasts the transmission line itself, easily exceeding 50 years of continuous service. Furthermore, end-of-life disposal is highly sustainable. The entire unit is 100% recyclable. Facilities melt down the hardware and glass. They crush the remaining aluminous cement for use as Recycled Concrete Aggregate in construction.

Classifying Glass Suspension Insulators by Environmental Profile

Selecting the wrong profile design leads directly to flashovers. Flashovers trigger network downtime and equipment damage. You must match the physical geometry to your specific deployment environment. Different climates require different glass suspension insulators to manage surface contamination.

The Standard Profile works perfectly for low-to-moderate pollution areas. You also deploy it in extremely cold, clean regions. It offers a standard creepage distance. The moderate bell shape prevents normal rain and snow from bridging the electrical gap.

The Anti-Pollution (Fog Type) Profile features significantly extended creepage distances. Manufacturers design these with much deeper, more pronounced under-ribs. Coastal areas experience dense salt fog. Heavy industrial zones generate thick chemical dust. These environments require fog-type profiles to prevent moisture from creating a conductive film across the surface.

The Aerodynamic (Open) Profile features a smoother, flatter umbrella shape. It lacks the deep protective ribs of the fog type. Engineers design this specifically for desert or high-wind environments. Deep ribs trap sand and dry dirt. The open profile relies on prevailing winds to constantly blow the surface clean. This self-cleaning action proves critical in arid regions.

Procurement Framework: 3 Steps to Sourcing the Right Insulator

A structured approach helps you write accurate purchasing specifications. It prevents under-engineered solutions that risk grid stability. Follow these three steps to align your procurement with engineering realities.

Step 1: Baseline Technical Parameters (ANSI/IEC Standards)

You must first verify the required Mechanical Failing Load (MFL). Commercial ranges typically span from 40kN for distribution lines up to 550kN for massive river crossings. Next, you must confirm the required creepage distance. You calculate this based on the system's basic insulation level (BIL). A proper BIL ensures the string withstands expected voltage surges and lightning strikes.

Step 2: Line Voltage Matching Matrix

You scale the mechanical and electrical strength alongside the transmission voltage. As a general rule of thumb, standard 220kV transmission lines require units rated for at least 160kN. However, Ultra-High Voltage (UHV) lines push structural limits. Networks operating between 500kV and 1000kV carry heavier, bundled conductors. These UHV lines demand heavy-duty components rated at 300kN or higher.

Step 3: Evaluating Contamination Mitigation Upgrades

For extreme environments, traditional profiles might not suffice. You should specify factory-applied RTV (Room Temperature Vulcanizing) silicone coatings. RTV coatings add a powerful hydrophobic, water-repellent layer. Evidence shows this layer prevents moisture and contaminant films from forming continuous bands. It drastically reduces leakage current in heavy smog or harsh saline areas.

Implementation Realities: Handling, Installation, and QA

Procuring excellent components solves only half the puzzle. You must mitigate risks during the rollout phase. Proper handling ensures the projected lifespan becomes a reality.

Pre-installation QA requires strict visual inspection protocols. Field crews should look for uniform galvanization on all metal hardware. Uneven zinc coatings invite rapid rust. You must also verify the cement curing integrity. The cement boundary should appear solid and flush without deep cracking.

Handling risks pose a unique challenge. Toughened glass is incredibly robust under massive tension. However, it remains susceptible to blunt force impact prior to stringing. Workers dropping tools or knocking units against steel towers can trigger premature shattering. You should outline clear, safe storage protocols. Mandate the use of proper hoisting cradles rather than dragging strings across the ground.

String configuration offers flexibility during installation. If an environment proves more polluted than expected, you do not always need to order a new model. Engineering practices allow you to increase the number of units in a single string. Adding two or three extra discs elevates the overall insulation tier. You improve the safety margin without changing the individual unit model.

Conclusion

High-voltage glass insulators deliver unmatched diagnostic transparency and residual mechanical safety. They outpace alternative materials in sheer reliability and long-term financial efficiency. When failures do occur, they fail safely and visibly. This characteristic allows ground crews to spot issues instantly and delay repairs until scheduled windows.

To maximize grid stability, you should review your current line failure rates immediately. Audit your specific environmental conditions to verify if you need standard, fog, or aerodynamic profiles. Finally, consult directly with certified manufacturers. They will help you match exact ANSI or IEC specifications to your required mechanical failing loads and voltage matrix.

FAQ

Q: Why do glass insulators spontaneously shatter?

A: A minor percentage, typically less than 0.01%, may shatter due to microscopic impurities like nickel sulfide inclusions. Extreme thermal or mechanical stress can also trigger this. Engineers view this "fail-loud" mechanism as a deliberate safety feature. It makes faults highly visible to inspection crews without requiring specialized diagnostic cameras.

Q: What is the difference between antique telegraph insulators and modern glass suspension insulators?

A: Historical insulators were small, pin-type glass cups used for low-voltage telegraph and telephone lines from the 1840s to 1970s. Modern grid insulators are massive, multi-component suspension assemblies. Engineers design these modern units to withstand hundreds of thousands of volts and extreme mechanical tension on transmission towers.

Q: Can a shattered glass insulator drop the power line?

A: No. The internal geometry of the metal cap and forged steel pin acts as a mechanical failsafe. It retains a minimum of 80% of its structural load-bearing capacity. The line stays securely anchored even if the external glass skirt breaks away entirely.

Q: How does pollution affect glass insulators?

A: Contaminants like sea salt or industrial dust settle on the surface. When combined with moisture, they form a conductive film. This film leads to leakage current and electrical arcing, known as flashovers. You mitigate this by using extended creepage profiles, scheduling routine pressure washing, or applying hydrophobic RTV silicone coatings.
