Repurposing vintage electrical hardware into custom lighting or striking decor pieces is highly popular today. However, successfully drilling a solid, vintage object presents a significant mechanical challenge for even experienced DIY enthusiasts. Standard masonry drilling techniques will inevitably shatter the piece due to extreme friction and pressure. The solid top of these items can easily reach up to one inch thick. This creates a high-friction environment demanding precise thermal management and highly specialized tooling to avoid total failure.
This comprehensive guide evaluates the viability of modifying antique glass hardware. It outlines the exact specifications required to prevent thermal fracturing during the process. You will also learn about critical safety risks associated with industrial-grade hardware and discover proven methods to achieve a clean, shatter-free hole every single time. By following these strict parameters, you can safely transform these historic pieces into functional modern designs.
Mandatory Tooling: Standard carbide bits will fail; a diamond core bit (typically 1/2-inch for pendant cords) paired with a drill press is non-negotiable.
Thermal Management: Continuous water cooling is required to prevent heat-induced shattering and to suppress hazardous silica dust.
Safety Warning: Attempting to drill modern, high-voltage tempered glass suspension insulators carries a severe risk of explosive shattering.
Execution Metrics: Operate at a strict 600–900 RPM using only light, gravity-assisted down-pressure.
Before investing time and purchasing expensive tooling, you must identify whether your hardware is actually safe to modify. A visual inspection often reveals the manufacturing era and intended use. Misidentifying your material can lead to project failure or serious physical injury.
Standard antique insulators are highly common in the DIY community. You can often find them at flea markets or online auctions valued at roughly $3 to $5. Manufacturers originally made these from annealed glass. This means they cooled the material slowly to remove internal stresses. While annealed material remains quite brittle, it responds predictably to grinding. You can successfully drill it if you manage the thermal stress properly. Because the replacement cost is so low, they make excellent practice pieces for beginners learning how to grind thick glass.

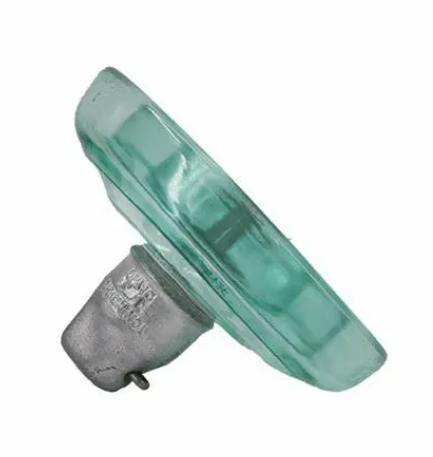

You must exercise extreme caution regarding modern industrial electrical hardware. Do not attempt to drill modern or industrial glass suspension insulators under any circumstances. Brands like Sediver produce these units for high-voltage power grids. They feature a highly complex metal, cement, and glass nested structure. This multi-layered design makes standard drilling virtually impossible without specialized industrial machinery.
High-voltage suspension hardware utilizes specially tempered materials. Manufacturers intentionally engineer massive internal tension into the structure. This serves a critical safety function for utility workers. If the outer shell becomes compromised by lightning or physical impact, it fails explosively. The entire bell shatters violently. This sends sharp splinters flying at high speeds. The explosive failure allows utility line inspectors to easily spot a broken unit from the ground. However, if you apply a drill bit to this tensioned surface, you trigger that exact self-destruct mechanism. The resulting explosion poses a severe risk of eye injury and lacerations.
Sometimes your goal is simply separating a rusty metal pin from the bell housing. Do not try to drill out the center pin. Instead, use chemical dissolution. Utility companies assemble these pins using incredibly strong dielectric epoxy and cement. Soaking the entire assembly in muriatic acid offers a proven, non-destructive alternative. The acid slowly dissolves the cement and epoxy bond over several days. You can then slide the metal pin out freely. Always wear heavy rubber gloves and a respirator when handling muriatic acid. Perform this soaking process outdoors in a well-ventilated area.
Feature | Vintage Annealed Types | Modern Industrial Suspensions |
|---|---|---|
Material State | Annealed (cooled slowly, low tension) | Tempered (rapidly cooled, extreme tension) |
Drilling Viability | High (with diamond tooling and water) | Extremely Dangerous (do not attempt) |
Failure Mode | Linear cracking if overheated | Explosive shattering into sharp fragments |
Typical Cost | $3 to $5 on secondary markets | High replacement cost, usually utility property |
Selecting the right equipment guarantees the highest success rate with the lowest breakage. Using the wrong drill bit will instantly ruin your project. You must approach this task as a precision grinding operation rather than standard hole boring.
You must completely avoid spade bits, standard twist drills, or carbide-tipped masonry bits. These tools rely on a wedging action to remove material. Applying wedge pressure to a rigid surface instantly causes massive fractures. Instead, select a high-quality diamond core bit, frequently called a diamond hole saw. A 1/2-inch diameter bit represents the industry standard for these lighting projects. This specific size perfectly accommodates standard pendant light electrical wiring. It allows the fabric-covered cord to pass through smoothly without chafing against sharp internal edges.
A stationary drill press is highly recommended over any handheld drill. A drill press ensures absolute vertical alignment throughout the entire cut. Handheld tools inevitably wobble. When a spinning diamond core bit wobbles inside a deep hole, it binds against the sidewalls. This sudden binding action creates a fulcrum effect, snapping the glass in half immediately. A drill press prevents the bit from wandering on the initial bite. It also gives you precise control over the downward feed rate.
You cannot hold the object by hand while drilling. The rotational torque will rip it from your grip. The workpiece must remain securely clamped or nested to prevent spinning. Create a dedicated workholding setup.
Use a drill press vise lined with thick rubber pads.
Alternatively, build a custom wooden V-block jig to cradle the round shape.
Never allow bare metal clamps to contact the surface under pressure.
Ensure the base is entirely flat and stable on the drill press table.
Common Mistake: Clamping the vise too tightly will crush the hollow skirt before the drill bit even touches the surface. Apply just enough pressure to prevent rotation.
Thermal shock causes almost all project failures in this niche. You must understand how heat interacts with rigid structures to prevent your piece from cracking halfway through the process.
Diamond core bits do not actually "cut" material in the traditional sense. They grind it away using microscopic diamond abrasives embedded in a metal matrix. This aggressive grinding action generates rapid, intense localized heat. Rigid materials act as poor thermal conductors. If the drilled area heats up drastically while the surrounding area remains room temperature, the hot spot attempts to expand. The cold outer ring restricts this expansion. The resulting stress causes the piece to crack instantly.
This technique offers excellent cooling visibility and reduces mess. Follow these steps to implement the putty dam method:
Purchase standard plumber’s putty or soft modeling clay.
Roll a generous handful of the putty into a thick rope shape.
Press the putty rope firmly around the intended drill site, forming a continuous ring.
Pinch the walls upward to create a small, watertight "micro-dam".
Fill this internal cavity to the brim with clean, cold water.
This setup keeps the diamond bit completely submerged throughout the grinding process. As the water turns cloudy with debris, you can easily use a sponge to soak up the dirty slurry and replace it with fresh water.
If you cannot form a watertight seal using putty, use the full submersion method. Place the object upside down inside a clean plastic bucket. An empty one-gallon ice cream tub works perfectly for this application. Fill the container with cold tap water until the liquid level rests just a few millimeters above the highest point of the drilling surface. Secure the object using underwater rubber wedges so it does not drift. This guarantees an infinite supply of cooling liquid to the cut zone.
Water serves another mandatory function beyond thermal management. It traps microscopic silica dust. Airborne silica dust poses a severe respiratory hazard known to cause silicosis over time. Dry grinding flings this invisible dust into the air you breathe. By using a putty dam or full submersion, the water captures the dust particles. They safely form a heavy, wet slurry. You can simply wipe away this slurry with a paper towel afterward. Always wear an N95 respirator as a secondary safety precaution, even when using wet techniques.
Cooling Method | Setup Complexity | Cooling Efficiency | Best Use Case |
|---|---|---|---|
Putty Dam | Medium (Requires shaping putty) | Excellent | Flat top surfaces; quick visual inspection. |
Full Submersion | Low (Requires bucket and water) | Maximum | Curved or irregular surfaces; longest drilling times. |
Spray Bottle | Very Low | Poor | Not recommended. Causes uneven thermal shock. |
Understanding your machinery settings separates successful fabricators from those who constantly sweep up broken shards. The strict operational parameters below are required for success.
Speed kills when working with brittle materials. High speeds burn up the diamond abrasive and instantly boil away your cooling water. Set your drill press belts to a strictly low-speed range. Operating between 600 and 900 RPM provides the optimal balance. This specific speed range allows the diamonds to scrape away material efficiently without generating overwhelming frictional heat.
You must apply minimal down-pressure to the drill press handle. Many beginners mistakenly lean their body weight into the machine to speed up the tedious process. Forcing the bit downward causes micro-fractures inside the hole walls. Instead, allow the natural weight of the drill press quill to do the heavy lifting. The abrasive nature of the diamond bit should solely dictate the cutting speed. If you hear a high-pitched squealing sound, you are pushing too hard or your speed is too fast.
Implementing a "peck drilling" technique dramatically extends the life of your tooling. The hollow center of a core bit quickly packs tightly with crushed debris. Every 15 to 20 seconds, gently raise the bit slightly out of the hole while it remains spinning. This rapid upward movement allows the fresh cooling water to rush inside. The water flushes out the trapped silica slurry. Lower the bit gently back into the groove and resume light pressure.
The highest risk of damage occurs precisely when the bit finally pierces the opposite side. The top section can easily measure a full inch in depth. As you reach the final millimeter of material, the structural integrity of the floor vanishes. Reduce your handle pressure to near-zero. Let the bit essentially hover against the bottom. If you push aggressively during breakthrough, the bit will blow out a large, jagged chunk of material on the exit side. This destructive event is called spalling. A slow, zero-pressure breakthrough ensures a perfectly clean exit hole.
Sometimes the most intelligent fabrication choice involves avoiding mechanical modification completely. Reevaluate your project timeline and goals if the physical barriers prove too high.
The solid dome of a standard glass insulator is exceptionally thick. It acts as a massive physical barrier to traditional fabrication. Because the depth can reach one inch, expect incredibly long drill times. Even experienced users experience a high baseline scrap rate due to hidden internal stress fractures. You might spend 20 minutes grinding only to have the dome crack at the very last second. Consider whether the aesthetic payoff justifies this high failure rate.
Instead of aggressively drilling the top to hang a traditional pendant light, consider designing a bottom-up base mount. You can build a custom wooden or metal base containing the electrical wiring and a small LED bulb. You then place the unmodified piece directly over this base. The thick walls act as a passive, light-diffusing cover. This approach completely preserves the historical integrity of the piece. It also eliminates the need for expensive diamond tooling, drill presses, and messy water setups.
You can also achieve the hanging pendant look without boring a central hole. Look closely at the exterior design. Manufacturers originally molded deep side-grooves into the exterior to hold thick electrical tie wires. You can utilize these existing structural grooves. Modify standard pendant kits to run the wire externally. Wrap an attractive brass or copper wire tightly around the side-groove to create a secure hanging harness. This workaround preserves structural integrity while fully achieving the desired vintage industrial aesthetic.
Drilling a thick, vintage artifact requires significant patience, dedicated diamond tooling, and strict adherence to specific water-cooling protocols. It remains a highly viable process for vintage annealed pieces but is strictly prohibited for modern tempered utility hardware. You must respect the material's fragility by controlling your drill press speed and utilizing minimal feed pressure.
Evaluate your specific hardware immediately to confirm it is not industrial tempered material. Next, acquire a high-quality 1/2-inch diamond core bit and prepare a secure, water-cooled drill press station. Always utilize the putty dam or full submersion method to control heat and suppress silica dust. Finally, if the risk of breakage outweighs your aesthetic goals, pivot your project strategy to a non-destructive, base-mounted lighting design.
A: No. Standard twist drills, carbide-tipped masonry bits, or spade bits will either instantly shatter the glass or severely scratch it without penetrating. A diamond hole saw is required.
A: Because the top glass is roughly 1 inch thick, expect the process to take anywhere from 10 to 20 minutes of continuous, slow grinding. Rushing the process will result in a cracked piece.
A: The two most common causes of failure are a lack of continuous water cooling (causing thermal shock) or applying too much downward pressure, particularly right at the breakthrough point.
A: Yes. Airborne silica dust from grinding glass is a major respiratory hazard. Using the water submersion or putty dam method traps the dust in a liquid slurry, making it safe to clean up. Use a respirator as a secondary precaution.
