Is Glass Insulator of Heat​?

Have you ever wondered why a hot cup of tea easily burns your hand through a glass mug? Or why single-pane windows leak so much winter heat into the cold night? This creates a common paradox. People often hear glass blocks energy transfer. Yet, real-world experience shows it easily conducts heat. If it isolates energy so well, why do we freeze sitting next to a bare window?

We must separate electrical properties from thermal properties. Bare glass excels at blocking electricity. It dominates utility infrastructure for this exact reason. However, it acts as a mediocre thermal barrier unless you engineer it properly. Raw glass lacks the internal air pockets necessary to trap heat.

This article provides an objective breakdown of these insulating properties. We wrote it specifically for engineers, architects, and procurement teams. You will discover the microscopic physics separating heat and electricity. We also explore engineered thermal solutions, evaluate industrial applications, and clarify how to specify the right materials for your next project.

Key Takeaways

• Bare glass is an excellent electrical insulator but a relatively poor thermal insulator due to its lack of internal air pockets.

• The thermal insulating power of commercial glass comes from engineered systems (Double/Triple Glazing, Low-E coatings, Vacuum Insulated Glazing) rather than the raw material itself.

• In industrial and grid applications, glass suspension insulators remain a gold standard for electrical resistance and environmental durability.

• Glass insulation performance degrades under extreme conditions (e.g., electrical resistance drops significantly above 1000 K).

The Physics Behind the Glass Insulator: Heat vs. Electricity

We must examine the microscopic structure to understand how glass handles energy. Glass possesses an amorphous nature. It lacks a rigid, orderly crystalline lattice. Instead, its atomic layout appears entirely random. This non-crystalline structure heavily dictates how energy moves through the material.

Why does it resist electricity? You need "free" or delocalized electrons to conduct electric current. Metals have plenty of them. In glass, however, electrons remain tightly bound. They lock securely into chemical bonds. Because these electrons cannot move freely, the material boasts immense electrical resistance. At room temperature, a standard glass insulator typically achieves a resistivity greater than 10⊃1;⁴ ohm-meters. It blocks current almost perfectly.

Why does it conduct heat relatively easily? Heat travels differently than electricity. We must introduce "phonon scattering." Heat moves through solids via vibrational waves called phonons. The irregular atomic structure of glass scatters these waves. It slows down heat transfer compared to highly ordered metals. Copper transfers heat at 400 W/m·K. Glass transfers heat at a mere 0.8 W/m·K. However, solid glass lacks internal trapped air. Trapped air serves as the ultimate thermal barrier. Without these air pockets, raw glass fails to block heat efficiently. It remains a poor thermal barrier on its own.

Overcoming Thermal Limitations: Engineered Glass Solutions

The commercial market knows raw glass struggles heavily with heat retention. Engineers solved these inherent thermal deficiencies decades ago. They created advanced products for architectural and industrial buyers. You rarely buy bare panes for thermal control today. Instead, manufacturers manipulate the glass to perform.

• Insulating Glass Units (IGUs): The industry transitioned from single-pane to double and triple glazing. Manufacturers seal inert gas, like argon or krypton, between multiple panes. This trapped gas creates the actual thermal barrier. It drastically reduces convective and conductive heat transfer.

• Low-Emissivity (Low-E) Coatings: Bare glass allows radiant heat to pass freely. Low-E coatings fix this problem. Factories apply microscopic metallic layers to the glass surface. These layers reflect infrared thermal radiation back to its source. They do this without sacrificing visible light transmission. This controls solar heat gain perfectly.

• Vacuum-Insulated Glazing (VIG): This represents a premium bottom-of-the-funnel solution. VIG units eliminate conduction and convection almost entirely. Manufacturers pull a deep vacuum between two tightly spaced panes, using micro-pillars to keep them apart. Without air molecules, heat simply cannot transfer across the gap.

• Glass Fiber & Foam Glass: You can transform raw glass into highly porous structures. Think of fiberglass or glass wool. These materials trap massive amounts of air inside tiny pockets. This conversion drastically increases the material's thermal R-value. It turns a weak thermal barrier into industry-leading insulation.

Industrial and Grid Applications: The Role of Glass Suspension Insulators

Let us shift focus to B2B utility and electrical engineering use cases. Heat insulation matters heavily for commercial buildings. Electrical insulation matters for global power grids. Glass dominates the overhead utility sector.

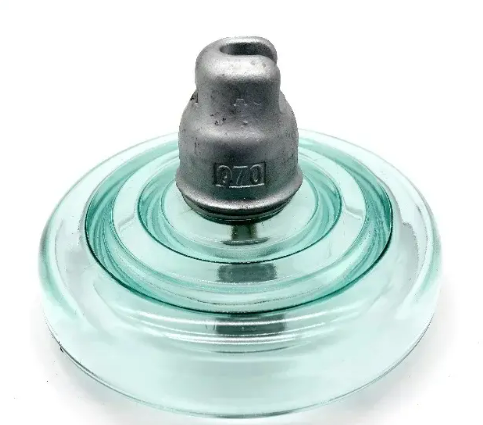

1. High-Voltage Grid Infrastructure: Overhead transmission lines carry massive voltage loads across long distances. Utilities rely heavily on glass suspension insulators to support these heavy cables. They safely isolate the live wires from the structural steel towers, ensuring electricity flows to cities instead of grounding out.

2. Evaluation Criteria for Utilities: Why choose toughened glass over porcelain or composite polymers? Glass offers unique operational advantages. First, it allows easy visual inspection. If toughened glass fails, it shatters completely. Maintenance crews can spot a broken unit from a helicopter instantly. Second, it delivers extremely high dielectric strength. Finally, it provides zero carbon tracking. Electrical arcs cannot leave conductive carbon paths on its surface.

3. Lifespan and Weathering: Grid assets face harsh environments continuously. Glass demonstrates remarkable resistance to UV degradation. Sunlight will not break it down over time. It also resists chemical corrosion brilliantly. These traits ensure reliable performance in coastal salt sprays, dry deserts, or heavy industrial deployments.

Comparative Evaluation: Glass vs. Alternative Insulating Materials

Specifiers face tough choices when weighing material options. You need an objective decision-stage matrix. Let us compare glass against alternative insulating materials. We must separate thermal and electrical requirements during this evaluation.

First, consider raw glass versus polyurethane foam and fiberglass. Compare their standard R-values. A single pane of glass offers an R-value of roughly 1. This provides negligible thermal resistance. By contrast, standard wall cavity insulation uses fiberglass or polyurethane foam. These deliver R-13 to R-15 ratings. If you need pure thermal resistance for a solid wall, raw glass loses completely.

Next, compare toughened glass versus ceramic insulators. Electrical applications require a different comparison matrix. You must weigh mechanical load limits, unit weight, and procurement availability. Toughened glass offers higher tensile strength than standard porcelain. It handles massive mechanical loads well during ice storms. Glass often weighs slightly less than equivalent ceramic strings, easing the installation burden.

Finally, we must address transparent versus opaque trade-offs. Sometimes, the specific business case demands glass. Opaque materials offer much higher R-values. However, they block light completely. When your project requires visibility, aesthetics, or natural light transmission, opaque options fail. You must use engineered glass. It balances necessary light transmission with highly acceptable thermal control.

Implementation Risks and Performance Limitations

Even the best materials fail when applied poorly. We must demonstrate practical experience here. You need to know exactly where glass fails and how to mitigate these implementation risks during your project.

You must mitigate the thermal bridging risk first. High-performance glass means nothing if the framing fails. We call this thermal bridging. Imagine installing triple-glazed units into standard aluminum frames. Aluminum conducts heat rapidly. The frame bypasses the insulated glass entirely. The metal pulls heat directly out of the building. To mitigate this, always specify frames utilizing integrated thermal breaks, such as polyamide strips.

Extreme temperature failures represent another physical reality. Glass handles normal temperatures perfectly. However, extreme heat changes its fundamental physics. Harvard University researchers demonstrated this clearly in laboratory settings. As temperatures approach 1000 K, glass begins to melt. Its internal structure loosens. Ions drift freely under electrical pressure. At this extreme threshold, glass actually becomes an electrical conductor. It loses its insulating power entirely.

Finally, account for mechanical vulnerabilities. Glass breaks. Consider impact resistance during the design phase. Tempered glass faces a unique risk called spontaneous breakage. Microscopic nickel sulfide inclusions can expand over time, shattering the pane unexpectedly. You can mitigate this through rigorous heat-soaking tests. Overhead installations require mandatory safety measures. You must use PVB laminates. If the glass breaks, the laminate holds the dangerous shards safely together.

Decision Framework: Specifying the Right Glass Insulator

Procurement teams need actionable advice. You must align the material exactly with your project goals. Use this framework to specify your materials accurately.

Focus heavily on target U-values for architectural heat insulation. The U-value measures how much heat transfers through the window. Lower numbers mean better insulation. Specify the correct Low-E coating for your specific climate zone. Colder climates need passive solar heat gain. Hot climates need strong solar reflection. Assess the efficiency gains of triple-glazing versus double-glazing based strictly on your local energy demands.

Your priorities shift entirely for electrical grid deployments. Check the mechanical failing load (MFL) requirements first. The glass must support the cable weight during heavy ice storms. Next, verify creepage distance standards. This crucial distance prevents electricity from arcing across the surface during heavy rain. Evaluate environmental contamination levels carefully. High-pollution areas might require special aerodynamic profiles. These profiles help the units self-clean during storms.

Do not guess your next steps. Request detailed spec sheets directly from manufacturers. Conduct proper thermal modeling for complex building envelopes. Consult directly with structural or electrical engineers before finalizing any purchase orders. Evidence-based planning prevents costly implementation failures.

Conclusion

We must reiterate that the answer to "is glass an insulator of heat" is highly context-dependent. Bare glass acts as a poor thermal barrier due to a lack of air pockets. Conversely, it excels fundamentally as an electrical barrier. We see this dual nature everywhere.

Engineered glass systems and structural glass fibers currently stand as industry-leading thermal barriers. They solve the inherent weaknesses of raw glass. By trapping gas, utilizing vacuums, or adding metallic coatings, manufacturers transformed a thermally weak material into an energy-efficient powerhouse.

Moving forward, align the specific physical properties of the glass strictly with your project requirements. Match your R-value, dielectric strength, and transparency needs to your operational environment. When you specify the correct engineered solution, glass delivers unparalleled performance across both architectural and industrial landscapes.

FAQ

Q: Is glass a better insulator than plastic?

A: Glass acts as a superior electrical insulator compared to many plastics. It also resists UV degradation and chemical corrosion far better over time. However, standard plastics often possess slightly lower thermal conductivity than raw glass. Polycarbonate provides slightly better raw heat insulation, but glass surpasses it when engineered into double-glazed units.

Q: At what temperature does glass lose its insulating properties?

A: Glass loses its electrical insulating properties as temperatures approach roughly 1000 K. At this extreme heat level, the material begins to melt. The tightly bound internal structure loosens, allowing ions to drift freely. This drift transforms the glass from an insulator into a functional electrical conductor.

Q: How do glass suspension insulators differ from ceramic ones?

A: Glass suspension insulators allow for immediate visual inspection. When toughened glass fails mechanically or electrically, the entire disc shatters visibly. Maintenance crews can spot this damage easily from a distance. Ceramic insulators often suffer internal micro-cracks or punctures. These hidden defects require specialized testing equipment to detect.

Q: Does the thickness of glass improve heat insulation?

A: Increasing the thickness of a single glass pane provides only negligible thermal improvements. Solid glass conducts heat relatively well. Adding an air or argon gas gap between two thinner panes proves exponentially more effective. The trapped gas, not the glass thickness, creates the actual thermal barrier.
