Bulk procurement errors can delay projects and increase costs. A glass insulator must meet precise mechanical, electrical, and dimensional requirements. This guide explains technical specifications, testing standards, and quality checks. Learn how to verify supplier documents and ensure consistent product quality across large orders.
Every bulk purchase should begin with an unambiguous product description. The specification should identify the insulator type, model designation, intended application, applicable standard, and required quantity. It should also state whether the order concerns a standard product or a customized design. These details establish the baseline for quotations, technical reviews, production planning, and incoming inspection.
The product description should not rely on a generic name alone. Different glass insulators may have similar appearances but different dimensions, fittings, mechanical ratings, or electrical characteristics. A buyer should provide the approved drawing or technical datasheet whenever possible. If the project permits alternative models, the specification should explain which characteristics must remain unchanged and which deviations require approval.
For overhead power applications, procurement documents may need to identify the suspension arrangement, coupling system, required mechanical load class, and relevant electrical requirements. The exact information depends on the project design and applicable standard. Model codes should be verified against manufacturer documentation rather than interpreted from the code alone. This is particularly important when replacing existing equipment or combining products from different suppliers.
The glass insulator product range can help buyers identify products for further technical evaluation. However, a category page is only a starting point. Before issuing a purchase order, confirm the exact model, approved specifications, and required documentation in writing. This gives the supplier and buyer a shared reference throughout production and delivery.
Mechanical load ratings are central to the specification of suspension insulators. They indicate the mechanical performance associated with a defined product class and applicable testing requirements. The required rating depends on the line design, conductor tension, support arrangement, environmental loading, and engineering calculations. Buyers should obtain the required rating from the project's approved design rather than selecting a value based solely on product availability.
A model designation such as U40B may identify a particular product configuration, but the complete technical meaning must be confirmed through the manufacturer's documentation and the relevant standard. The letter and number should not be treated as a universal description of every product feature. Mechanical ratings also differ from electrical ratings. An insulator that meets the required mechanical class may still need separate verification for electrical performance and environmental suitability.
Procurement teams should specify the required mechanical rating, test basis, and any relevant acceptance criteria. If the supplier proposes a substitute, the engineering team should compare its mechanical characteristics and connection details against the approved design. Similar dimensions do not prove equivalent load performance. Likewise, a higher rating does not automatically make a product suitable if its fittings or other specifications differ from the original requirement.
For bulk orders, these details should be confirmed before production starts. The supplier's quotation, datasheet, drawings, and inspection documents should identify the same product configuration. Any approved deviation should be recorded clearly. This approach reduces the risk of receiving units that cannot be accepted for the intended installation.
Electrical requirements describe how an insulator is expected to perform under defined operating and test conditions. Depending on the product and application, relevant parameters may include power-frequency withstand performance, lightning impulse withstand performance, and other requirements established by the applicable standard. Buyers should specify the required values and test conditions rather than asking suppliers to provide a general statement that the product is suitable for high voltage.
The system voltage alone does not define every insulation requirement. Engineers may also consider insulation coordination, system grounding, expected overvoltages, pollution severity, and the installation environment. These factors help determine which electrical performance criteria apply. Procurement teams should use the approved project specification to identify the necessary requirements and avoid adding unrelated tests that do not apply to the product.
Test results must be interpreted in context. Dry and wet withstand tests represent different conditions, while impulse tests assess behavior under specified transient waveforms. A result from one test cannot automatically replace another. Buyers should confirm the test method, applied conditions, acceptance criteria, and applicable standard. Where the project requires type tests, routine tests, or other verification, those requirements should be stated separately.
Electrical ratings should also be reviewed alongside the mechanical specification. Neither set of parameters provides a complete assessment by itself. Before placing a bulk order, the purchasing team should obtain confirmation that the quoted model meets all required electrical and mechanical criteria. This reduces the chance of approving a product that satisfies only part of the project's needs.
Note: Do not treat mechanical load ratings, operating voltage, and electrical withstand values as interchangeable specifications. Each must be checked separately.
Dimensional requirements should be documented before a supplier begins production. Depending on the design, the drawing may identify overall height, disc diameter, creepage distance, fitting dimensions, and other critical measurements. These values help confirm that the product matches the intended assembly and installation space. Buyers should specify units of measurement and identify the approved drawing revision to avoid conflicting interpretations.
A product may appear similar to an existing insulator while differing in one important dimension. Such a difference can affect string length, connection compatibility, electrical clearance, or the ability to install the component correctly. For replacement orders, the purchasing team should use verified drawings and equipment records rather than relying only on photographs or an old product description. If the original specification is incomplete, obtain engineering confirmation before accepting a substitute.
Dimensional tolerances also require attention. The specification should identify which measurements are critical and state the applicable tolerances or reference standard. Not every dimension requires the same tolerance, so buyers should avoid imposing arbitrary limits without technical justification. The supplier should confirm that its manufacturing and inspection processes can meet the stated requirements.
For bulk procurement, the approved drawing should be linked to the purchase order and inspection plan. Any subsequent revision should follow a documented approval process. This prevents production teams, inspectors, and buyers from using different versions of the same specification. Clear dimensional control reduces compatibility risks and supports consistent acceptance across multiple deliveries.

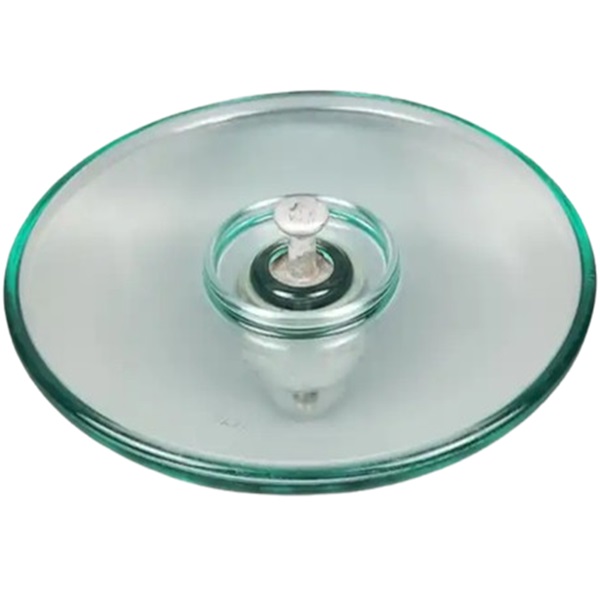

Glass suspension insulators commonly use metal fittings that connect individual units into a string. Depending on the design, these may include ball-and-socket connections or other standardized coupling arrangements. The interface must match the intended hardware and the applicable product requirements. A small difference in connection geometry can prevent correct assembly or create an unacceptable mechanical connection.
Procurement documents should identify the coupling type, relevant dimensions, and required compatibility standard. Buyers should also confirm whether the fittings are included in the quoted product or supplied separately. This is important when comparing offers from multiple manufacturers because a quotation may cover a different scope of supply. The supplier should provide drawings or technical information that clearly identify the proposed interface.
For replacement projects, inspect the existing assembly documentation and verify the required coupling arrangement. Do not assume that products with the same general mechanical rating will use interchangeable fittings. If a proposed model differs from the original, qualified engineers should assess the change before approval. The review should consider both the connection interface and the overall mechanical design.
Before delivery, inspection records should confirm that the supplied products match the approved configuration. Any special hardware, accessories, or assembly requirements should be documented. These checks help prevent avoidable installation delays and reduce the risk of receiving a batch that cannot be integrated into the planned string assembly.
Creepage distance is the shortest distance along an insulating surface between conductive parts at different electrical potentials. It is an important consideration for outdoor insulators because moisture and contamination can affect surface leakage. The required distance depends on the product design, system requirements, pollution conditions, and applicable standards. Buyers should therefore specify the required value or the governing design criteria rather than selecting a profile by appearance alone.
Insulator geometry influences the available surface path. Disc profiles, ribs, and other design features may change the creepage distance and the way moisture or contamination collects on the surface. However, a more complex profile is not automatically suitable for every environment. Its performance must be evaluated against the actual pollution severity, operating conditions, and electrical design requirements.
Procurement teams should confirm the creepage distance shown on the approved drawing and check that the supplier's datasheet uses the same definition and units. If a supplier proposes an alternative design, the engineering team should compare the relevant dimensions and electrical requirements. Visual similarity cannot establish equivalent insulation performance.
For projects in coastal, industrial, or heavily polluted areas, environmental requirements should be stated early in the procurement process. This allows suppliers to quote products designed for the intended conditions. The final choice should be supported by relevant technical documentation and an approved engineering assessment. Clear requirements help avoid late design changes and reduce the risk of ordering an unsuitable product.
The specification should identify the standards governing the insulator's design, testing, and acceptance. The applicable documents depend on the product category, project requirements, and destination market. Buyers should not assume that every glass insulator follows the same standard or that compliance with one document automatically satisfies all project requirements.
Where an international or national standard is specified, the procurement team should confirm its correct designation and applicable edition. If a contract references a particular standard, the supplier should state whether the quoted model complies with it. Any proposed alternative standard should be reviewed and approved by the responsible engineering team before production. This is especially important when products are sourced internationally.
Standards may address mechanical performance, electrical testing, dimensions, materials, marking, and other product characteristics. The precise requirements vary, so the specification should identify the relevant clauses or tests where necessary. Buyers should avoid copying a standard reference from another product without confirming that it applies to the intended insulator.
A compliance checklist can help track these requirements. It should record the required standard, supplier confirmation, supporting document, and approval status. This provides a clear audit trail and helps prevent missing information from being discovered only after shipment. The final acceptance decision should follow the contract, approved specification, and applicable standards.
Test documentation should be relevant to the exact product design being purchased. Buyers may need type-test reports, routine-test records, inspection results, or other evidence specified by the contract. Each document serves a particular purpose, and the required set depends on the applicable standard and project requirements. A general statement of compliance is not always enough to establish conformity.
Check the product designation, design configuration, test conditions, acceptance criteria, and referenced standard. If a report covers a product family, ask the supplier to explain why it applies to the quoted model. A test report for a similar unit should not automatically be treated as proof for a different design. The relationship between the tested sample and the supplied product must be clear.
For large orders, the buyer should determine which tests are required before production begins. Some verification may relate to design qualification, while other checks may be required for individual production batches or units. These categories should not be confused. The inspection plan should state which documents must be provided, when they are due, and who reviews them.
The approved documents should be retained with the purchase order and delivery records. If a supplier changes the design or production arrangement, the buyer should assess whether the existing evidence remains valid. This helps maintain traceability and avoids accepting products based on incomplete or outdated documentation.
Quality management certificates can provide useful information about a manufacturer's management system, but they do not replace product-specific verification. Buyers should check the certificate's scope, validity, and issuing body where relevant. They should also confirm that the supplied product meets the purchase specification through the required test and inspection records.
Traceability records help link the delivered goods to the relevant model, batch, production records, and inspection documents. The exact traceability requirements depend on the project and supplier arrangement. For bulk procurement, buyers should define how products and packaging will be identified and what information must appear on delivery documents. This is especially useful when shipments arrive in multiple batches.
An effective acceptance plan should explain how the buyer will review documents and inspect the goods. It should identify who can approve deviations and what happens if a product fails the stated criteria. These procedures should be agreed before shipment rather than negotiated after a problem occurs.
When documentation is complete and traceable, procurement teams can investigate discrepancies more efficiently. They can also identify which delivery or batch requires review. This supports better inventory control and replacement planning. Clear documentation requirements are therefore part of technical procurement, not merely administrative paperwork.
Tip: Request the applicable standards, test requirements, and traceability documents before issuing the purchase order. Confirm the exact deliverables in writing.
A single approved technical datasheet should serve as the main reference for the purchase. It should identify the product model, dimensions, mechanical and electrical requirements, fittings, applicable standards, and required documents. The purchase order, quotation, drawings, and inspection plan should refer to the same specification. This reduces the chance that different teams will work from conflicting information.
Version control matters when a project involves multiple reviews or repeat orders. If a drawing changes after a quotation is issued, the buyer should record the revision and confirm whether the supplier has accepted it. Old versions should not remain in active use without clear identification. Otherwise, the supplier may manufacture against one drawing while the inspector checks another.
The datasheet should also distinguish mandatory requirements from optional features. This helps suppliers understand which deviations are unacceptable and which alternatives may be proposed for review. Where a technical detail is not yet confirmed, mark it as pending instead of allowing the supplier to make an undocumented assumption. Critical unknowns should be resolved before production approval.
For long-term purchasing programs, retain the approved specification and link it to each order. Any future change should be assessed for compatibility with previous deliveries and installed equipment. This is particularly important when replacement products must match existing hardware. Consistent specification control supports repeatability, simplifies audits, and reduces avoidable procurement errors.
Bulk orders may be delivered in one shipment or across several production batches. Buyers should define how each batch will be identified and inspected. The inspection plan should state which dimensions, visual characteristics, markings, and documents must be checked. Where testing is required, the plan should identify the applicable method and acceptance criteria.
Inspection sampling should follow the project specification or applicable standard. Buyers should not choose a sampling rate arbitrarily when the product standard or contract already defines one. If additional inspection is needed because of project risk, the scope should be agreed with the supplier before production. This helps avoid disputes over inspection costs and delivery delays.
Records should identify the inspected batch, sample selection, results, and any nonconformities. If a defect is found, the buyer and supplier should follow the agreed procedure to determine the affected quantity and required corrective action. Depending on the findings, this may involve additional inspection, repair where permitted, replacement, or rejection. The decision should follow the applicable acceptance requirements.
Batch consistency is important because one approved sample does not automatically prove that every unit in a large shipment conforms. A documented inspection process helps verify that production remains aligned with the approved design. It also provides evidence if a later quality issue requires investigation.
Packaging requirements should be specified before the supplier prepares the shipment. Glass insulators need suitable protection against impact, movement, and handling damage. The packaging method should reflect the product design, shipment route, storage conditions, and handling equipment. Buyers should confirm whether cartons, cases, pallets, protective separators, and other packing materials are included in the quotation.
Marking requirements also deserve attention. Depending on the specification, products or packages may need model identification, batch references, quantities, orientation markings, or handling instructions. The required details should be stated clearly so the supplier can prepare the correct labels and documents. Buyers should avoid adding unnecessary markings that conflict with the product standard or approved design.
For multi-batch deliveries, package identification should make it possible to link the goods to the corresponding packing list and inspection records. This helps receiving teams check quantities and locate documentation without mixing products from different batches. It also supports inventory control when some units are reserved for specific projects.
Before shipment, confirm the packaging plan and required shipping documents. On arrival, inspect the external packaging for signs of damage and record any visible issues. If damage is found, follow the agreed notification and claims process. Suitable packaging and clear identification help protect product condition and preserve traceability throughout transport.
Incoming inspection confirms whether the delivered products match the approved purchase documents. The receiving team should check the model designation, quantities, package identification, visible condition, and required documentation. Critical dimensions or other characteristics should be verified according to the agreed inspection plan. These checks help identify discrepancies before products are released for installation or storage.
The inspection process should distinguish visible checks from tests requiring specialist equipment or qualified personnel. A receiving team may be able to confirm markings and packaging, but it should not assume that appearance proves electrical or mechanical performance. Where the contract requires formal testing, the results should be reviewed by the designated technical authority.
Any discrepancy should be recorded with enough detail to support investigation. Relevant information may include the order number, batch reference, package number, photographs, inspection results, and description of the issue. The buyer should notify the supplier within the contract's specified timeframe. Products with unresolved nonconformities should be managed according to the agreed acceptance procedure.
Final acceptance should follow the purchase contract and applicable technical requirements. The buyer should not release products for use simply because the shipment arrived on time. Verifying the delivered goods against the approved specification helps prevent installation problems and creates a documented record of the procurement decision.
A complete delivery package may include the packing list, invoice, model identification, inspection records, required test reports, and other documents specified in the contract. The exact set depends on the shipment and destination. Buyers should establish the required documents before dispatch so missing records do not delay customs clearance, incoming inspection, or project handover.
The receiving team should reconcile the delivered quantity against the purchase order and packing list. Where products arrive in multiple batches, each delivery should be linked to its corresponding records. This helps identify shortages, duplicate entries, or documentation that refers to a different model. It also makes it easier to locate the correct records during later maintenance or replacement work.
Technical documents should be stored in a way that allows the product model and batch to be retrieved. For projects with many insulators, a consistent naming and filing system can reduce administrative effort. The records should identify the approved specification revision and any accepted deviations. This creates a clear history of what was ordered, supplied, inspected, and accepted.
If documentation is incomplete, the buyer should identify the missing items and follow the agreed process for resolution. Acceptance conditions should be defined in the contract rather than left to informal discussions after delivery. Clear records help protect both the buyer and supplier by making the requirements and delivered evidence easier to verify.
A nonconformity occurs when a delivered product or document fails to meet a stated requirement. Examples may include incorrect dimensions, mismatched fittings, missing test records, damaged units, or a mechanical rating that differs from the approved specification. The response should follow the contract, inspection plan, and applicable technical requirements.
The first step is to document the issue and identify the affected products. Buyers should avoid assuming that one defect automatically applies to the entire shipment, but they should also avoid releasing potentially affected units without review. The supplier may need to investigate production records, inspect additional units, or provide further evidence. Any corrective action should be approved by the responsible party.
Possible outcomes depend on the nature of the problem and the contract. They may include additional inspection, replacement, rejection, or another formally approved resolution. A product should not be accepted through an undocumented deviation if that change affects safety, performance, or compliance. Any concession must be reviewed and recorded by the authorized technical or procurement representative.
Clear procedures reduce confusion when a shipment does not meet expectations. They define who must be notified, what evidence is needed, how quickly a response is required, and who bears the relevant costs. Establishing these rules before ordering helps procurement teams manage problems consistently and protects the integrity of the technical specification.
Note: Define acceptance criteria, notification deadlines, and corrective-action responsibilities in the contract before shipment.
Bulk glass insulator procurement requires accurate specifications, verified test reports, and consistent quality checks. Proper documentation helps reduce delivery risks and ensure product compatibility.
Load Break Tools offers glass insulator options for power transmission projects, helping buyers evaluate products against their technical requirements.
A datasheet should identify the model, dimensions, mechanical rating, electrical requirements, coupling details, and applicable standards.
Required tests depend on the product standard and project specification. They may include mechanical, electrical, and dimensional verification.
They help ensure compatibility with existing hardware and prevent installation problems caused by dimensional differences.
Check model-specific test reports, inspection records, traceability information, and compliance with the approved specification.
Follow the agreed nonconformity procedure, document the issue, and obtain an authorized resolution before accepting affected products.
