In the world of high-voltage power grids, a seemingly simple action—opening a switch—harbors a lethal threat. Consider this question: "Why can't you simply open a high-voltage switch like you'd flip a light switch at home?"
The answer lies in a violent physical phenomenon known as an Arc Flash. When a high-voltage circuit is interrupted, the air between the contacts is instantly ionized, creating a plasma channel—an arc—with temperatures reaching 20,000°C (four times the surface temperature of the sun). This man-made lightning bolt unleashes a devastating blast wave, toxic gases, and enough energy to vaporize metal. For a field operator, it is the ultimate occupational hazard.

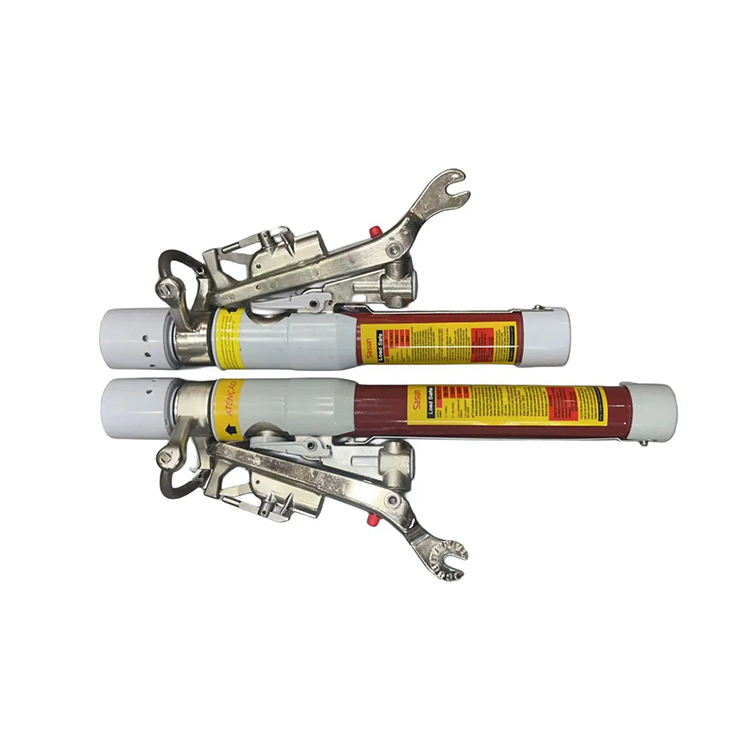

However, we are not defenseless. The portable Load Break Tool was engineered specifically to tame this ferocious beast of energy. It is by no means an ordinary stick; it is a precision-engineered solution designed to safeguard lives.
This guide will give you a complete understanding of:
How it neutralizes danger in milliseconds (The Working Principle).
Why it is so incredibly reliable (The Safety-Centric Design).
What you must do in the field (The Pre-Use Checklist).
Imagine electrical current as a relentless flow of traffic on a superhighway. If you were to suddenly demolish a bridge ahead, the speeding cars wouldn't just stop; their immense momentum would cause them to "jump" the gap, resulting in a chaotic, fiery disaster.
High-voltage current behaves similarly. When you attempt to open a switch under load, the powerful "momentum" of the current forcibly breaks through the air, creating a sustained, conductive plasma channel—the arc. This not only severely damages the switch contacts but also poses a catastrophic threat to nearby personnel and equipment.
Therefore, the ultimate mission of a load break tool is not merely to "open" a circuit. It is to do so safely, controllably, and rapidly. Its core function can be summarized in two words: Arc Quenching.
Action: The operator firmly attaches the tool's hook onto the pull-ring of the switching device (e.g., a fuse cutout or disconnect switch).
Principle: Once engaged, a highly conductive path inside the tool is placed in parallel with the main circuit. Current, by its nature, seeks the path of least resistance. It immediately divides, flowing simultaneously through the original switch contacts and through the tool's internal circuit. This is like building a sturdy, temporary bridge right next to an old one that's slated for demolition, preparing for a safe crossing.
Action: The operator begins to pull down on the tool's insulated hot stick. As the switch's moving contact starts to separate from its stationary contact, the entire load current is now "forced" to flow exclusively through the tool's internal bypass circuit. Critically, this same pulling motion compresses a powerful internal spring, storing a significant amount of mechanical potential energy.
Analogy (Unique Perspective): This process is like setting a sophisticated mousetrap. The energy is safely contained and locked within the tool, poised for instantaneous release upon command.
Action: When the tool is pulled to a predetermined point in its stroke, an internal mechanical trigger is tripped.
Principle (The Core Concept): This is the heart of the operation. The stored energy in the compressed spring is instantly released, driving the tool's internal moving contact open at a speed far exceeding what a human operator could achieve. Speed is the key to killing the arc! This extremely rapid separation quickly elongates the arc, causing its energy density to plummet. The arc can no longer sustain its plasma channel and extinguishes itself within milliseconds.
Action: Any tiny, residual arc is completely and safely extinguished inside a sealed, specially designed "arc-quenching chamber" within the tool. The entire operation occurs with no external flash or loud report. After the operation, the operator can easily reset the tool for its next use.
Principle: High-performance arc-quenching chambers are often lined with an arc-ablative material. The intense heat of the arc causes this material to decompose, instantly generating a high-pressure blast of insulating gas that forcefully blows out the arc, ensuring it is completely extinguished.
A certified load break tool is a testament to safety engineering, where every component is designed with reverence for human life.
This seemingly simple pole is the first and most critical line of defense between the operator and high voltage. Constructed from high-strength composite materials like fiberglass, it is manufactured in strict accordance with standards like ASTM F711 to guarantee sufficient insulation distance and dielectric strength, even in damp or contaminated conditions.
Many high-end tools are equipped with this inconspicuous but vital feature. Like an odometer in a car, it precisely records every opening operation the tool performs. Why is this critical? Because the internal contacts and arc-quenching chamber are consumable parts that degrade with use. The counter enables a data-driven maintenance schedule, allowing for component replacement before they reach their end-of-life. This transforms maintenance from guesswork into preventative science, directly preventing failures.
The robust mechanical design ensures the tripping action is both "non-reversible" and standardized. Once the pull is initiated, the full stroke must be completed to trigger the trip. This eliminates failures caused by "human factors" like operator hesitation, insufficient force, or inconsistent pulling speed. It entrusts the most critical arc-extinguishing step to precise, reliable machinery.
Developing a "pre-flight check" habit before every operation is the hallmark of a true professional. Internalize this checklist until it becomes muscle memory.
Body: Is the surface free of deep cuts, scratches, cracks, chemical corrosion, or contamination? Ensure it is clean, smooth, and dry.
Metal Parts: Are the hook, latch, and other metal components free of rust, bending, or deformation?
Labels: Are all warning and rating labels (especially voltage and current ratings) legible? Never use a tool with unknown or exceeded ratings.
A comprehensive situational awareness check also includes observing the condition of nearby line components, such as suspension insulators and lightning surge arresters, to ensure the overall integrity of the structure before operation.
Smoothness: In a safe, de-energized area, perform one full operating cycle. Does the tool pull and reset smoothly, without binding or sticking?
Sound: Listen carefully. Is the sound of the trigger trip crisp and decisive? Are there any unusual noises during reset?
Latch: Check that the hook's safety latch opens freely and snaps back securely to prevent accidental disengagement.
Weather: Are you operating in rain, snow, heavy fog, or other wet conditions? Most load break tools are strictly prohibited for use in wet weather.
Clearance: Ensure you have adequate safe working distance and clearance. Your footing should be stable, with no overhead or rear obstructions.
Personal Protective Equipment (PPE): This is the final, non-negotiable line of defense. Confirm you are wearing all required PPE:
Properly rated insulating gloves and boots
Hard hat
Safety glasses or face shield
Arc-rated, flame-retardant clothing
A deep understanding of how a load break tool works is more than a technical requirement; it is the ultimate commitment to your own safety and that of your team.
This tool is not a cold piece of hardware. It is an extension of your professional knowledge and meticulous attitude. A well-maintained, properly inspected, and correctly used tool speaks volumes about the operator's expertise, reliability, and confidence. Treat your guardian well, and it will guard you safely in return.
